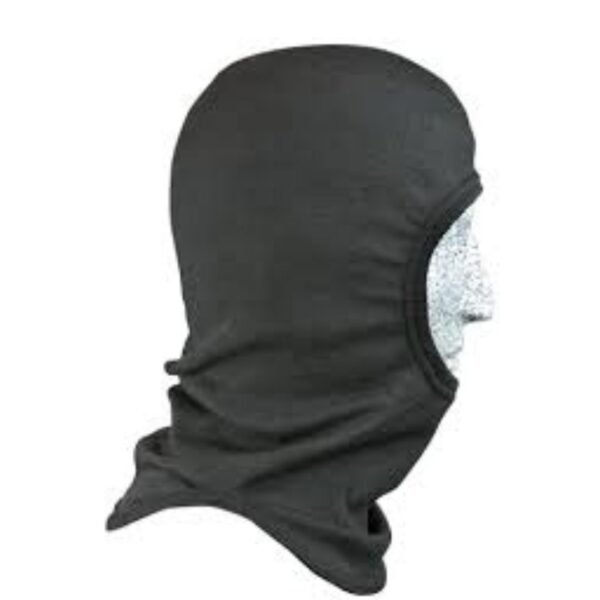

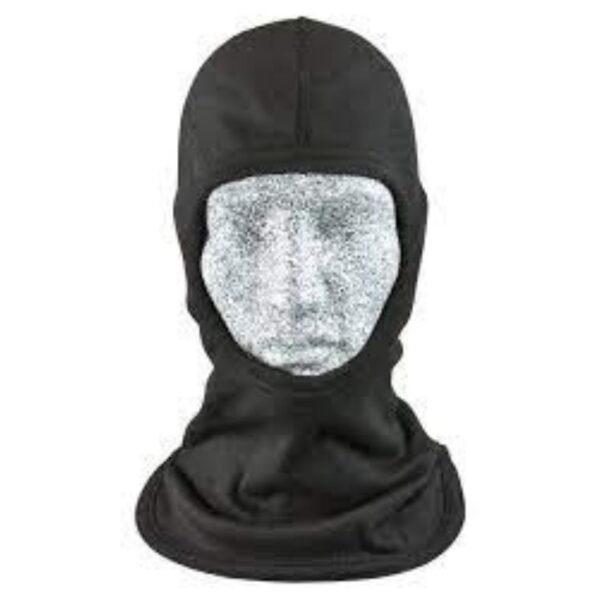

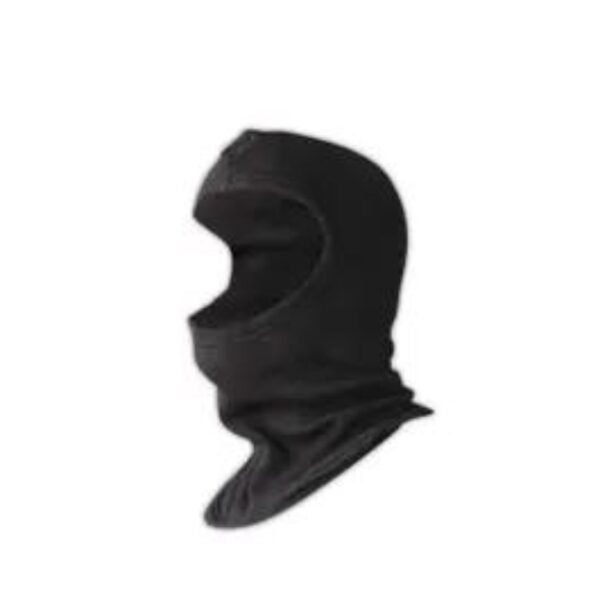

Cobra Hood 3029298 – PGI COBRA™CLASSIC™

Cobra Hood 3029298 – PGI COBRA™CLASSIC™

FABRIC:

•  Outer shell is a blend of Carbon/High Strength Aramid -approx. 6.5 oz sq yd.
• 1 x 1 rib knit fabric – knit to allow approx. 200% stretch for maximum stretch and recovery.
• Calendared to minimize laundry shrinkage.

STITCH TYPES AND SEAMS:

• All stitching conforms to federal Standard 751 Specifications (FED-STD-751).
• Major seams are flat seam assembled, stitch type 607.
• Elastic in face opening is serged in with stitch type 504 and reinforced with bottom cover-stitch, stitch type 406.
• Binding is applied with bottom cover-stitch, stitch type 406.

THREAD:

• All seams are sewn with 100% Nomex thread size Tex 40.

CONSTRUCTION:

• Composed of two layers throughout.
• Seamed from top of face opening to bottom back then cover-stitched for extra strength.
• Face opening is circular in shape and serged with x-heavy duty ½” wide elastic around the perimeter. The elastic is then folded back ½” and cover stitched. The face opening stretches a full 16″ (which is 25% more than conventional hoods) for easy donning and a snug fit around face of SCBA mask. Face opening maintains original shape after repeated launderings.
• The bottom edge of hood is bound with self-material bias binding.
• Shoulders are contoured on each side allowing the hood to lie flat on the chest and back for maximum coverage.

Finished Hood Measurements:

1. Face opening is circular and measures between 4.6″ to 5.6″ in diameter.
2. Length of hood below face opening approx. 9″.
3. Length of hood at side from top to bottom approx. 15″.
4. Length of hood at front and back from top to bottom approx. 18½”.

Size: One size hood fits all.

Labeling and User Information:

Each hood is clearly labeled to identify material contents, NFPA acceptance, UL Classification, Date of Manufacture, and Care Instructions.  Included with each hood is a complete users information guide.

Meets or Exceeds Industry Standards

UL classified to meet or exceed NFPA 1971-Current Edition; Compliant with CAL-OSHA,  Sections 3406 and 3410(d) and OSHA Rule 29 CFR, Part 1910, 269.  Compliant with NFPA 70E Current Edition and meets performance specifications of ASTM-F-1506.  ARC Rating:  23.3 – Hazard / Risk Category – 2.
